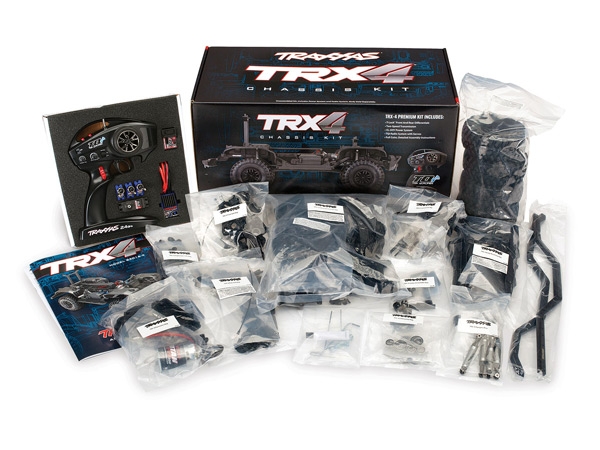

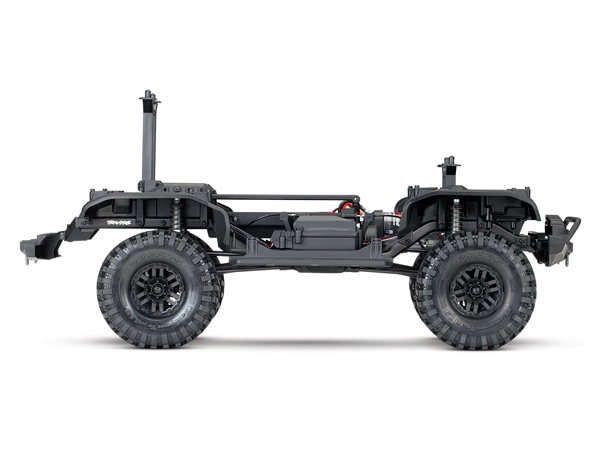

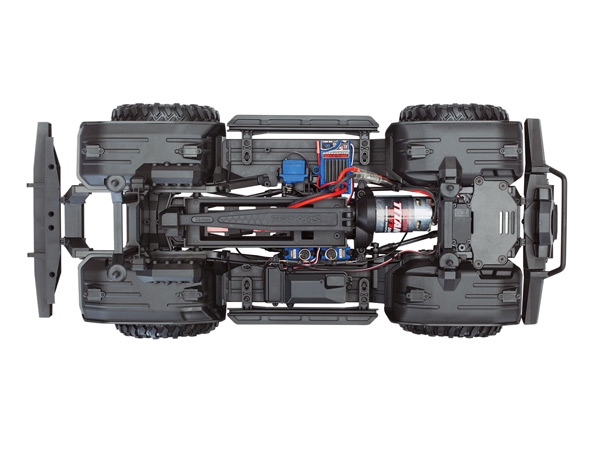

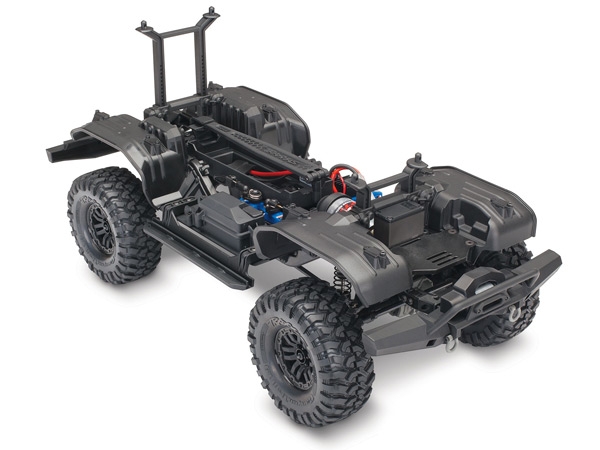

Modell 82016-4: TRX-4 Cassis Bausatz, Maßstab 1:10, 4x4 Trail Crawler, wasserdichte Elektronik, TQi ™ 2,4 GHz 4-Kanal Fernsteuerung, XL-5 HV Regler und Titan 21T 550 brushed Motor. Ohne Akku, Ladegerät und Karosserie.
Länge: 523mm
Breite: 249mm
Höhe: 266mm
Achsabstand: 312mm
Eigenschaften:
- Easy to follow full-color assembly manual
- True-to-scale part illustrations and ruler charts
- Helpful assembly tips and clear illustrations
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Powerful Titan™ 21T reverse rotation motor
- Internal cooling fan
- Precise, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance (3.14”)
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartments
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary battery mount over front axle for forward weight bias
- Two speed high/low range transmission with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Pre-assembled heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
- Pre-assembled aluminum GTS Shocks
- Coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Shock oil included in kit
- Wheels and Tires
- 1.9” Canyon Trail tires with trail-tuned foam inserts
- Tough black scale wheels
- Trail tuned S1 rubber compound
- 12mm steel hex
- Tire glue required
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Folgendes wird zusätzlich benötigt:
Schraubendreher
Reifenkleber
Karosserie
Batterien Fernsteuerung:
1x TRX2914 Traxxas Alkaline Batterien AA (4 Stück)
Ladegerät z.B.:
TRX2970G EZ-Peak Plus 4A Ladegerät - oder
TRX2971G EZ-Peak Live 12A Schnell-Ladegerät
Akku z.B.:
1x TRX2831X 5000mAh 11.1v 3-Cell 20C LiPo - oder
1x TRX2849X 4000mAh 11.1v 3-Cell 25C LiPo - oder
1x TRX2872X 5000mAh 11.1v 3-Cell 25C LiPo - oder
1x TRX2843X 5800mAh 7.4v 2-Cell 25C LiPo - oder
1x TRX2869X 7600mAh 7.4v 2-Cell 25C LiPo - oder
1x TRX2960X 5000mAh 8.4v 7-Cell NiMH - oder
1x TRX2952X 4200mAh 7.2v 6-Cell NiMH - oder
1x TRX2950X 4200mAh 8.4v 7-Cell NiMH - oder .....
