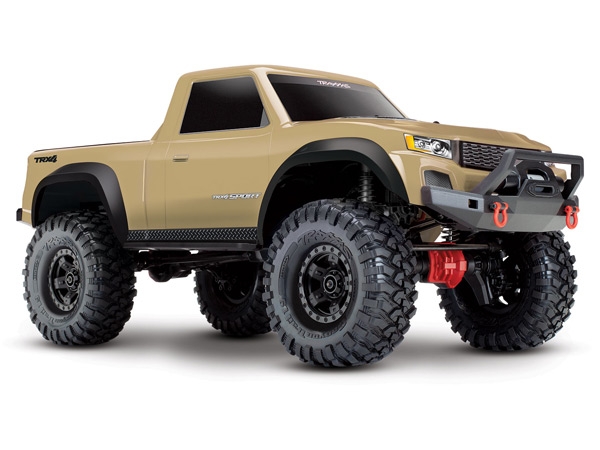

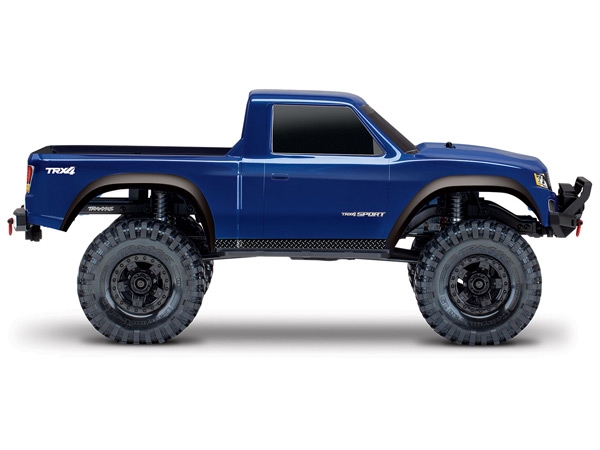

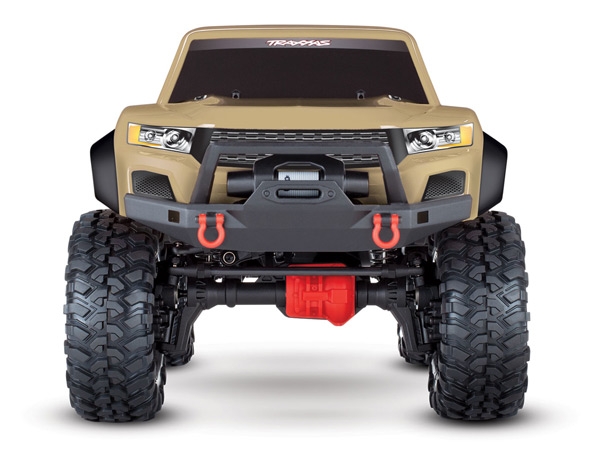

Modell 82024-4: TRX-4 SPORT, Maßstab 1:10, Pickup Crawler, 4x4, komplett montiert, wasserdichte Elektronik, Ready-to-Drive®, mit TQi ™ 2,4 GHz 2-Kanal Fernsteuerung, XL-5 HV Regler, Titan 21T brushed Motor und Pickup Karosserie. Erhältlich in tan oder blau.
Ohne Akku und Ladegerät.
Länge: 557mm
Breite: 248mm
Höhe: 241mm
Achsabstand: 312mm
Gewicht: 2.63kg
Farben: Blau, Tan, Rot
Folgendes wird zusätzlich benötigt:
Batterien Fernsteuerung:
1x TRX2914 Traxxas Alkaline Batterien AA (4 Stück)
Ladegerät:
TRX2971G EZ-Peak Live 12A Schnell-Ladegerät
Akku z.B.:
1x TRX2831X 5000mAh 11.1v 3-Cell 20C LiPo - oder
1x TRX2849X 4000mAh 11.1v 3-Cell 25C LiPo - oder
1x TRX2872X 5000mAh 11.1v 3-Cell 25C LiPo - oder
1x TRX2843X 5800mAh 7.4v 2-Cell 25C LiPo - oder
1x TRX2869X 7600mAh 7.4v 2-Cell 25C LiPo - oder
1x TRX2960X 5000mAh 8.4v 7-Cell NiMH - oder
1x TRX2952X 4200mAh 7.2v 6-Cell NiMH - oder
1x TRX2950X 4200mAh 8.4v 7-Cell NiMH - oder .....
Eigenschaften:
- Tough, Lightweight Pickup Truck Body
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
- Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan™ 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

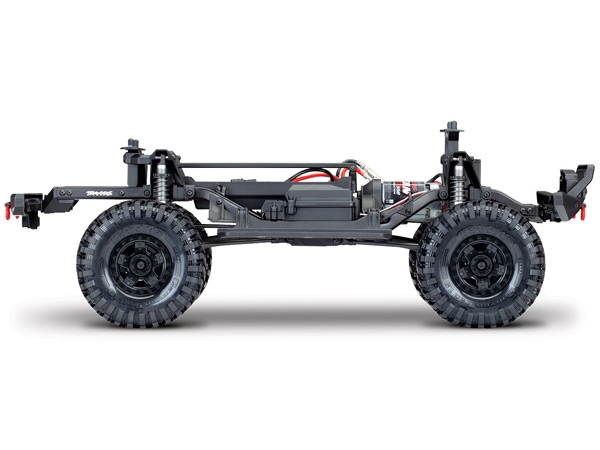

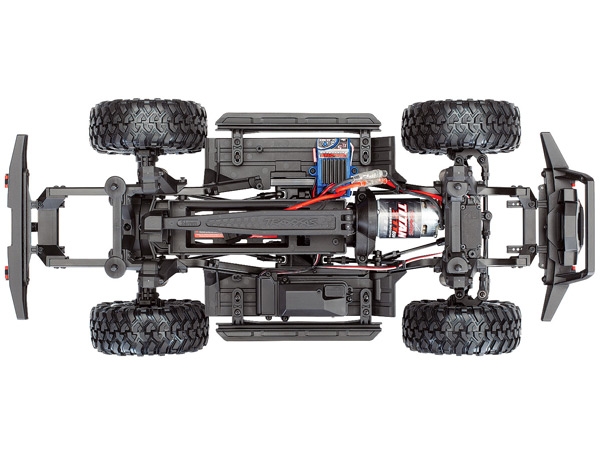

- Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
- TQ™ 2.4GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
